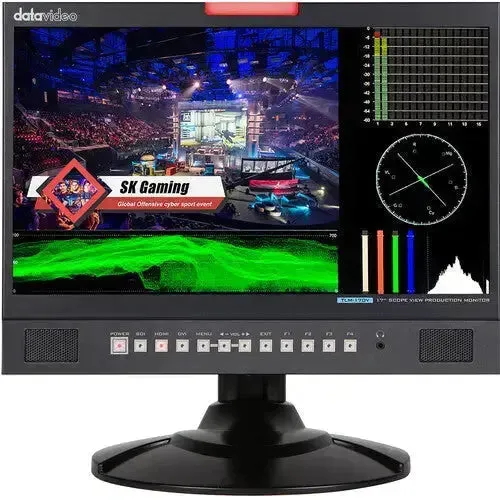

Datavideo TLM-170V 17.3" ScopeView Production Monitor
Add a high-quality 1080p display and professional features to your production with the desktop TLM-170V 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 1920 x 1080 resolution display and supports up to 1080p60 video via a 3G/HD/SD-SDI input, two HDMI inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross-conversion so, for example, you can input via SDI and output to HDMI.
The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a 89 angle of view, 300 cd/ brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false colour, image flip, safe frame, and more. The monitor comes with an adjustable, tilting desktop stand.
Key Features
- 1920 x 1080p IPS Panel Resolution
- 3G-SDI video input with 3G-SDI loop-through output
- HDMI video input with HDMI loop-through output
- SDI/HDMI cross-format conversion

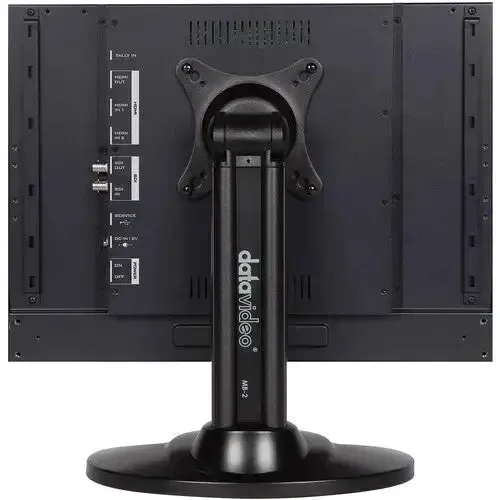

- Built-in tally with 3.5mm input for live broadcast
- Brightness, contrast, colour saturation, and LED backlight
- Front panel headphone jack
- User-defined F1/F2/F3/F4 shortcut keys
- USB 2.0 firmware upgrade
- Desktop stand included
